TCS 1031 VO-1000 DCC Decoder
TCS 1031 VO-1000 DCC Decoder
Couldn't load pickup availability

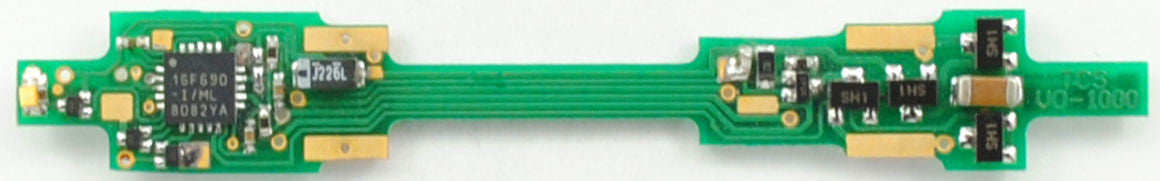

The VO-1000 is a N-scale drop-in decoder which is specifically designed for the Atlas VO-1000 locomotive.
- Interface Type: Drop-In
- Dimensions (L x W x H): 2.496" x 0.355" x 0.135" or 63.41mm x 9.02mm x 3.43mm
- Scale: N Scale
- Continuous/Peak: 1.0/2.0 Amp
- Total Functions: 4
- Function Rating: I 80 mA
- 12V Outputs: 2
- Onboard LEDs: 2
Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Variable Momentum: Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible: Fully compatible with Airwire™ operation.
User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
