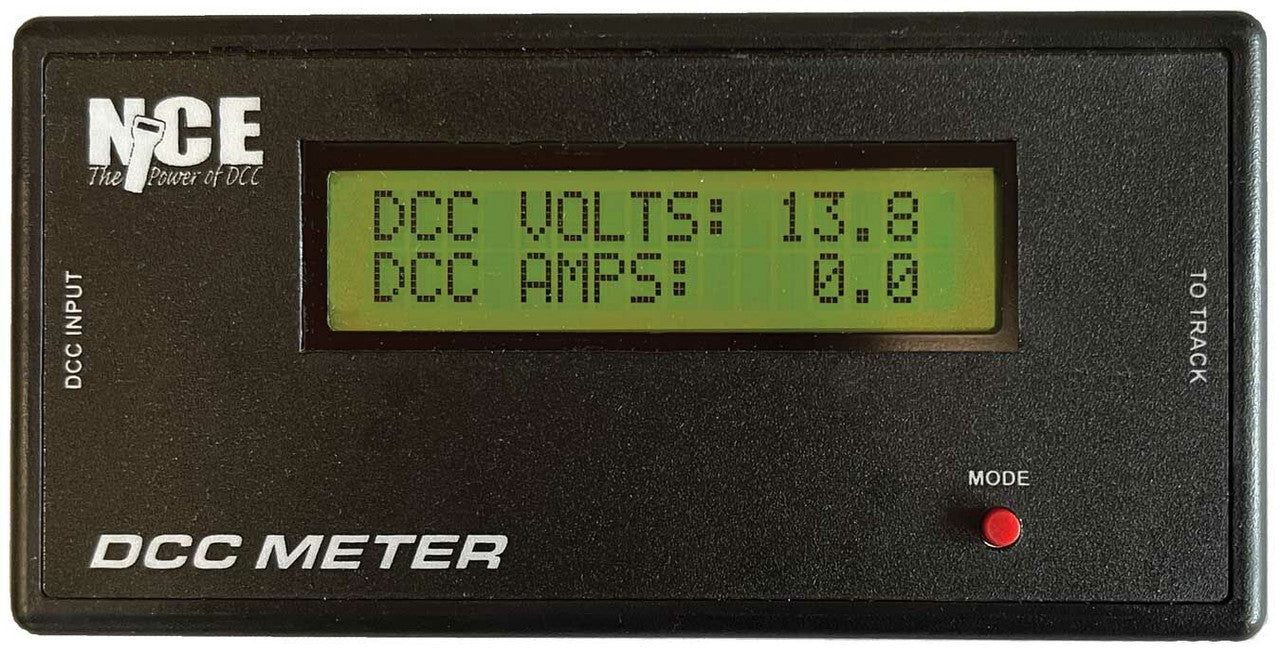

326 DCC Meter/ Packet Analyzer

The NCE DCC Meter/Analyzer allows you to analyze the voltage, amperage and signal packets on your system at the track level. It features simple hookup and easy connection to the track.

Meter Features:

• DCC voltmeter function measures up to 25 volts DCC.
• DCC Amp meter function measures up to 11.5 Amps.

Packet Analyzer Features:

• View DCC packets sent by the command station on a computer screen.
• Selectively filter out idle, reset, accessory, function, and or speed packets
• Opto-isolated to prevent ground loops from the DCC system to the computer.
• Powered from the track, no extra power supply needed.
• Display in Hex or Verbose mode

Additional Requirements (not included):

• PC/Mac/Linux computer
• USB cable

We will also be offering the faceplate for mounting on your layout fascia - stay tuned!
